Description

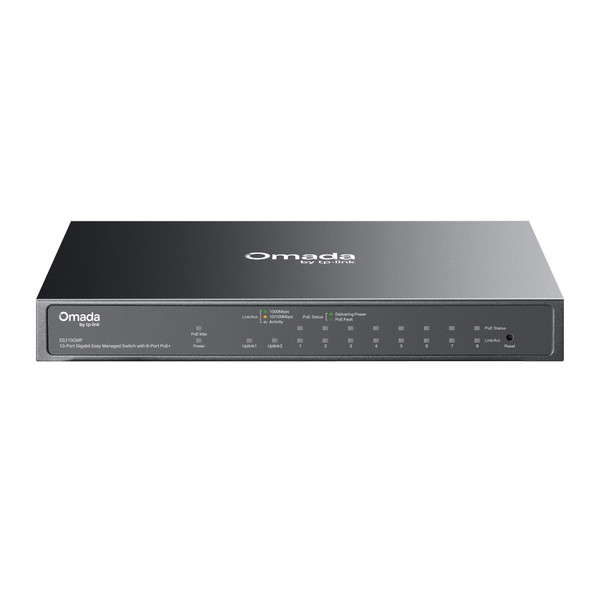

The TP-Link Omada ES210GMP is a 10-port Gigabit easy-managed switch featuring 8 PoE+ ports and a 123W power budget. Designed for small-to-medium businesses and IP surveillance, it offers centralized cloud management, 250m extended PoE transmission, and a fanless design for silent operation
Features:
- 9x 10/100/1000Mbps RJ45 ports (8× 802.3af/at-compliant PoE+)
- 1x Gigabit SFP/RJ45 Combo port
- 123W Power Budget, with up to 30W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Automatic Loop Prevention, VLAN, and IGMP Snooping
Technical Specifications
Buffer
4 Mbit
Compliance
FCC CE RoHS
Dimensions
8.2×4.9×1.0 in (209×126×26 mm)
Ethernet Port
8x10/100/1000Mbps PoE+ RJ45 Ports, 1x10/100/1000Mbps RJ45 Ports, 1xGigabit SFP/RJ45 Combo Port
Fans
Fanless
Forwarding Rate
14.88Mpps
Installation Type
Desktop, Wall Mount
MAC Address
8K
Operating Temperature
0℃~40℃ (32℉~104℉)
Surge Protection
6kV
Switch Rating
20Gbps
Voltage
Input 100-240V AC, Output 53.5V DC/2.43A
Warranty
5 Year Warranty
