Description

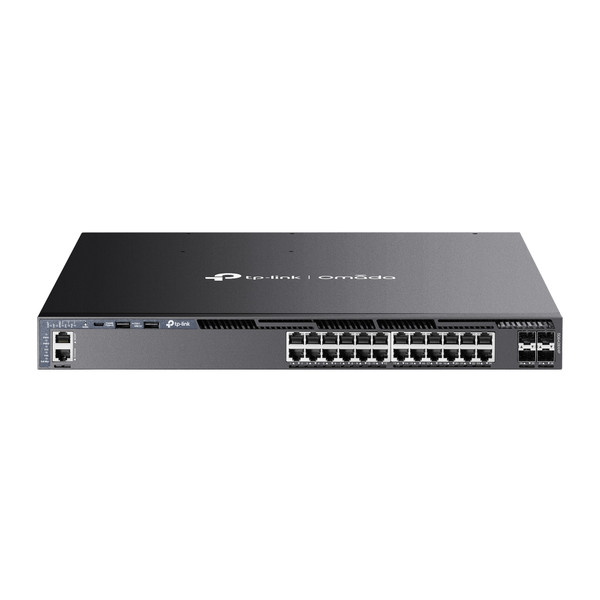

The TP-Link Omada SG6428XHP is an enterprise-grade Layer 3 managed stackable switch designed for high-performance convergence and access layers. It features 24 Gigabit PoE+ ports, four 10 Gbps SFP+ uplinks, a massive 720 W PoE budget, and support for physical stacking and redundant, hot-swappable power supplies
Features:
- 24x Gigabit RJ45 PoE+ ports
- 4x 10 Gbps SFP+ slots
- Up to 720 W total PoE budget
- Fast PoE and Perpetual PoE
- Physical Stacking up to 8 units for built-in redundancy and performance
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
Technical Specifications
Buffer
3MB
Consumption
42.9W No PD, 916.6W with PD
Dimensions
17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Ethernet Port
24x 10/100/1000Mbps RJ45 Ports, 4x 10G SFP+ Slots
Fans
3x Field Replaceable/Hot Swappable
Forwarding Rate
95.2Mpps
Heat Dissipation
146.29BTU/hr No PD, 3125.61BTU/hr with PD
MAC Address
32K
Mount Type
Rack Mount
Operating Temperature
-5 °C to 45 °C (23 °F to 113 °F)
Switch Rating
128Gbps Per Unit
USB Port
2x USB 2.0 Ports
Warranty
5 Year Warranty
