Description

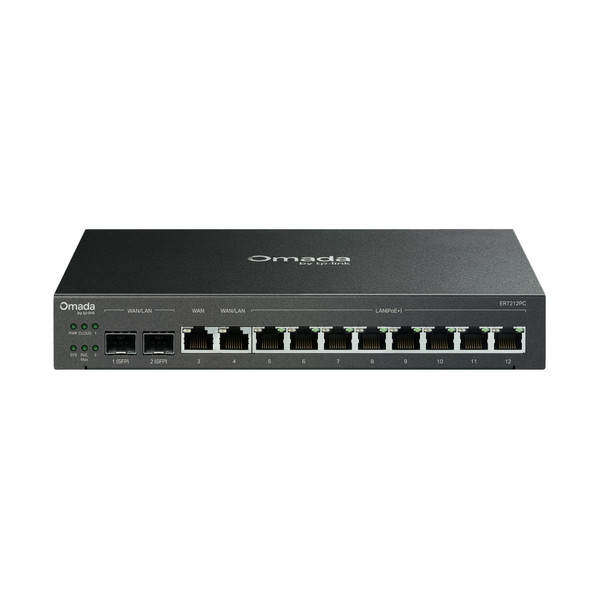

The TP-Link Omada ER7212PC is a 3-in-1, fanless Gigabit VPN router that integrates a gateway, PoE+ switch, and hardware controller into a single device. Designed for homes and small businesses, it eliminates the need for separate management hardware while delivering up to 4 WAN ports and robust, secure network routing
Features:
- Up to 12× Gigabit ports bring high-speed network.
- Up to 4× WAN Ethernet ports for a stable network.
- Centralized Cloud Management: Cloud access and the Omada app for easy management.
- Highly Secure VPN: Supports IPsec VPN / OpenVPN / L2TP / PPTP / WireGuard / SSL VPN.
- Easy Installation: Compact, fanless design supports flexible mounting options - desktop, wall, or rack (rackmount kit sold separately).
Technical Specifications
Button Type
Reset Button
Compliance
CE FCC RoHS
Consumption
131W (110V/60Hz)
Dimensions
8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
Ethernet Port
2x Gigabit SFP WAN/LAN Port, 1x Gigabit WAN Port, 1x Gigabit LAN/WAN Port, 8x Gigabit LAN Port
Fans
Fanless
Material
Steel Enclosure
Mount Type
Desktop Mount, Wall Mount, Rack Mount
Operating Temperature
-5 °C to 45 °C
Surge Protection
6kV
Voltage
53.5VDC 2.43A
Warranty
5 Year Warranty
