Description

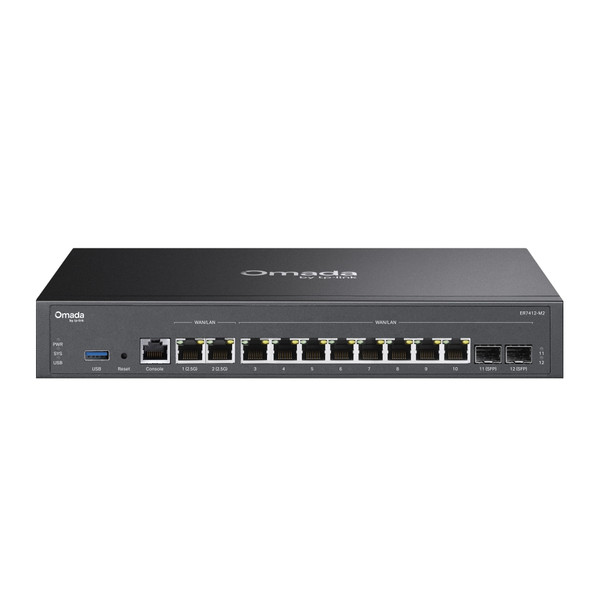

The TP-Link Omada ER7412-M2 is a high-performance, multi-gigabit VPN gateway engineered for dense environments like schools, hotels, and offices. It features a robust 2.0 GHz quad-core processor, 1 GB of DDR4 RAM, and extensive WAN connectivity options to handle high-bandwidth applications seamlessly. [1, 2, 3, 4]
Features:
- Quad-core @2.0GHz CPU
- 2x 2.5G RJ45 WAN/LAN ports
- 10x Gigabit WAN/LAN Ports (2x SFP, 8x RJ45)
- 1x USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)
- Load Balancing on up to 11 WAN ports increases the utilization rate of multi-line broadband
- Centralized cloud management via the web or the Omada app
Technical Specifications
Button Type
Reset Button
CPU
Quad Core ARMv8
Compliance
CE FCC RoHS
Consumption
18.5W (with USB 3.0 Connected)
Dimensions
11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Ethernet Port
2x 2.5G RJ45 WAN/LAN Port, 2x Gigabit SFP WAN/LAN Port, 8x Gigabit RJ45 WAN/LAN Port
Frequency
50/60Hz
Mount Type
Desktop Mount, Rack Mount
Operating Temperature
0–45 ℃ (32–113 ℉)
Surge Protection
4kV
USB Port
USB 3.0 Port
Voltage
100-240VAC
Warranty
5 Year Warranty
