Description

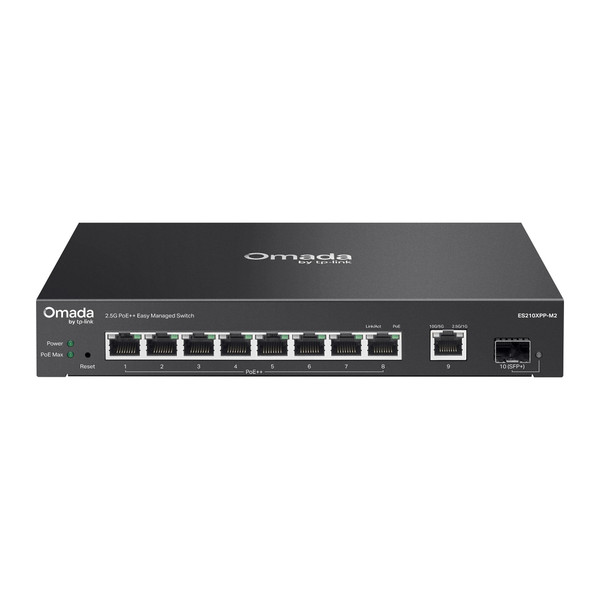

The TP-Link Omada ES210XPP-M2 is a multi-gigabit easy-managed switch featuring eight 2.5G PoE++ ports and two 10G uplinks (one RJ45, one SFP+). Delivering up to 90W per port with a 200W total budget, it provides silent, high-performance, centralized cloud management for modern devices like Wi-Fi 7 access points and 2.5G NAS servers
Features:
- 8x 2.5 Gbps RJ45 ports (8x 802.3af/at/bt-compliant PoE++)
- 1x 10 Gbps RJ45 Port, 1x 10 Gbps SFP+ Slot
- 200W PoE budget, with up to 90W for each PoE port
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Durable metal casing and desktop/wall mounting design
Technical Specifications
Buffer
5 Mbit
Compliance
FCC CE RoHS
Dimensions
8.9 × 5.2 × 1.4 in (226 × 131.2 × 35 mm)
Ethernet Port
8x 2.5Gbps RJ45 Port, 1x10Gbps RJ45 Port, 1x10Gbps SFP+ Slot
Fans
Fanless
Forwarding Rate
59.52Mpps
Installation Type
Desktop, Wall Mount
MAC Address
16K
Operating Temperature
-10℃~40℃ (14℉~104℉)
Surge Protection
6kV
Switch Rating
80Gbps
Voltage
Input 100-240V AC, Output 54V DC/4.16A
Warranty
5 Year Warranty
