Description

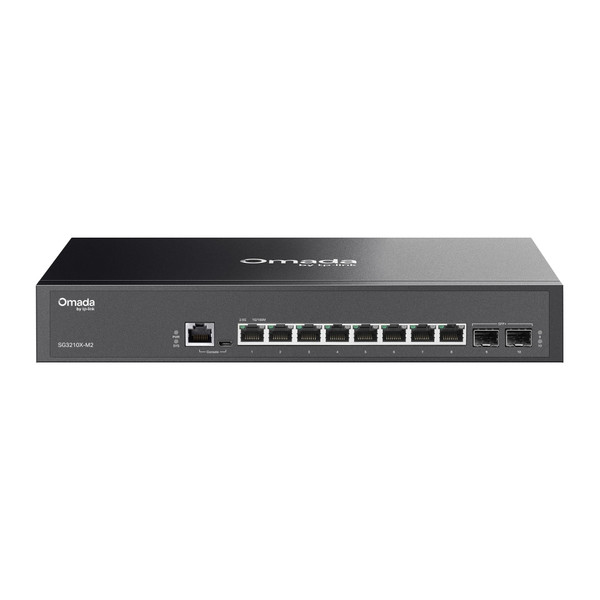

The TP-Link Omada SG3210X-M2 is an 8-port 2.5G L2+ managed switch equipped with two 10G SFP+ uplink slots. Designed for high-speed network upgrades, it removes bottlenecks between multi-gigabit bandwidth, Wi-Fi 7/6E access points, and NAS servers while integrating into the Omada Software Defined Networking (SDN) platform
Features:
- 8x2.5 Gbps RJ45 ports
- 2x 10 Gbps SFP+ slots
- 80 Gbps Switching Capacity
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
Technical Specifications
Buffer
12Mbit
Compliance
CE FCC RoHS
Consumption
15.3W
Dimensions
11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Ethernet Port
8x 2.5Gbps RJ45 Port, 2x 10G SFP+ Slots
Fans
Fanless Design
Forwarding Rate
59.52Mpps
Heat Dissipation
51.92BTU/hr
MAC Address
16K
Mount Type
Rack Mount. Desktop Mount
Switch Rating
80Gbps
USB Port
1x Micro USB Console Port
Voltage
100-240V 50/60Hz
Warranty
5 Year Warranty
