Description

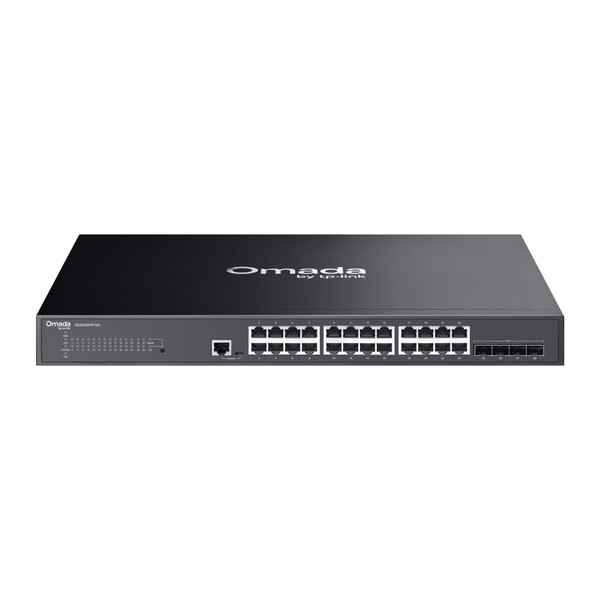

The TP-Link Omada SG3428XPP-M2 is an enterprise-grade 24-port 2.5G managed switch with four 10G SFP+ uplinks and full PoE++ capabilities. It is designed to maximize throughput for Wi-Fi 7/6E access points and high-bandwidth workstations, and fully integrates into the centralized Omada Cloud management platform
Features:
- 24x 2.5G PoE++ ports (Max 90 W per port)
- 4x 10G SFP+ slots
- 770 W total PoE budget
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
Technical Specifications
Buffer
16Mbit
Compliance
CE FCC RoHS
Consumption
900.2W/946.8W
Dimensions
17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Ethernet Port
24x 2.5Gbps PoE++ RJ45 Port, 4x 10G SFP+ Slots
Fans
3 Fans
Forwarding Rate
148.80Mpps
Heat Dissipation
3069.68BTU/hr
MAC Address
32K
Mount Type
Rack Mount
Surge Protection
6kV
Switch Rating
200Gbps
USB Port
1x Micro USB Console Port
Warranty
5 Year Warranty
