Description

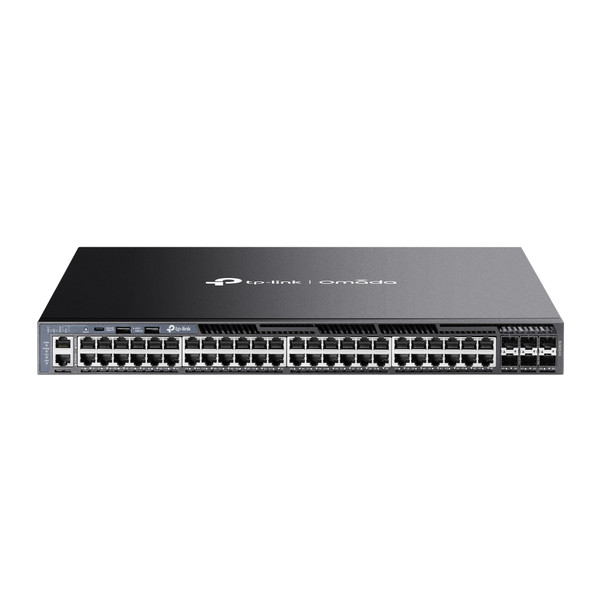

The TP-Link Omada SG6654X is a 48-port Gigabit stackable Layer 3 managed switch equipped with six 10 Gbps SFP+ slots. Designed for enterprise and campus networks, it offers 216 Gbps of switching capacity, physical stacking for redundancy, and centralized cloud management via the Omada SDN platform.
Features:
- 48x Gigabit RJ45 ports and 6x 10 Gbps SFP+ slots
- 216 Gbps switching capacity per unit
- Physical Stacking up to 8 units for built-in redundancy and performance
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two internal fixed power supplies, VRRP, and ERPS
- Centralized cloud management via Omada SDN controller
Technical Specifications
Consumption
39.8W
Dimensions
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)
Ethernet Port
48x 10/100/1000Mbps RJ45 Port, 6x 10G SFP+ Slots
Fans
4 Internal Fixed Fans
Forwarding Rate
160.7Mpps
Heat Dissipation
135.81BTU/hr
MAC Address
32K
Mount Type
Rack Mountable
Operating Temperature
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
Switch Rating
216Gbps Per Unit
USB Port
2x USB 2.0 Ports
Voltage
100-240VAC 50/60Hz
Warranty
5 Year Warranty
