Description

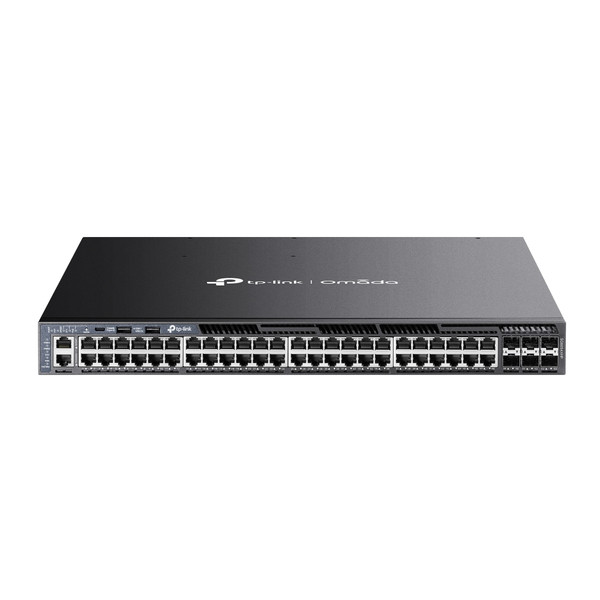

The TP-Link Omada SG6654XHP is an enterprise-grade Layer 3 managed stackable switch designed for high-performance network convergence, demanding surveillance setups, and large-scale SMB/Enterprise applications. It combines fast 10 Gbps uplinks with an extensive Power over Ethernet (PoE+) budget.
Features:
- 48× Gigabit RJ45 PoE+ ports
- 6× 10 Gbps SFP+ slots
- Up to 1440W total PoE budget
- Fast PoE and Perpetual PoE
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Centralized cloud management via the Omada SDN controller
Technical Specifications
Buffer
3MB
Consumption
67.24W(110V/60Hz) No PD, 1767.7W(110V/60Hz) With PD
Ethernet Port
48x 10/100/1000Mbps RJ45 Port, 6x 10G SFP+ Slots
Fans
4x Field Replaceable/Hot Swappable
Forwarding Rate
160.7Mpps
Heat Dissipation
229.29BTU/hr(110V/60Hz)No PD, 6027.86BTU/hr(110V/60Hz)With PD
MAC Address
32K
Mount Type
Rack Mountable
Operating Temperature
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
Switch Rating
216Gbps Per Unit
USB Port
2x USB 2.0 Ports
Voltage
100-240VAC 50/60Hz
Warranty
5 Year Warranty
