Description

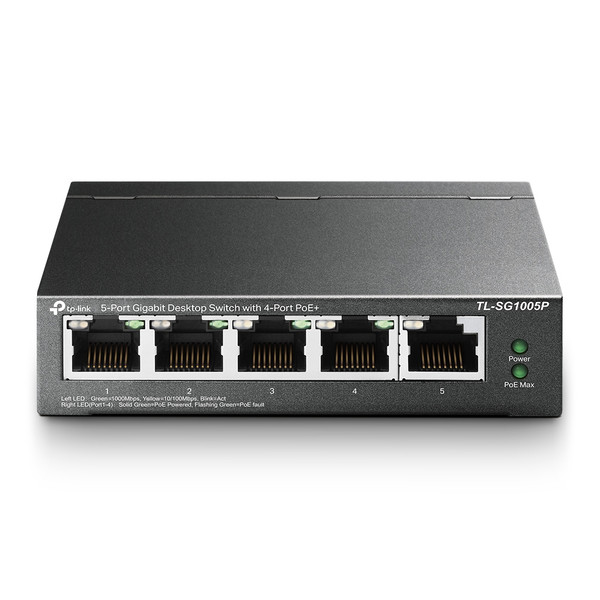

The TP-Link TL-SG1005P is an unmanaged 5-port Gigabit switch featuring 4 Power over Ethernet (PoE+) ports. It is designed to easily expand home and office networks while eliminating the need for separate power cables for connected devices
Features:
- 5x 10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Requires no configuration and installation
Technical Specifications
Compliance
FCC CE RoHS
Consumption
4.3W/74.2W
Dimensions
3.9 × 3.9 × 1.0 in.(99 × 98 × 25 mm)
Ethernet Port
5x 10/100/1000Mbps RJ45 Ports
Fans
Fanless
Forwarding Rate
7.44Mpps
Heat Dissipation
14.6BTU/h, 243.2BTU/h
MAC Address
2K
Operating Temperature
0–40 ℃ (32–104 ℉)
Switch Rating
10Gbps
Voltage
54VDC 1.3A
Warranty
3 Year Warranty
