Description

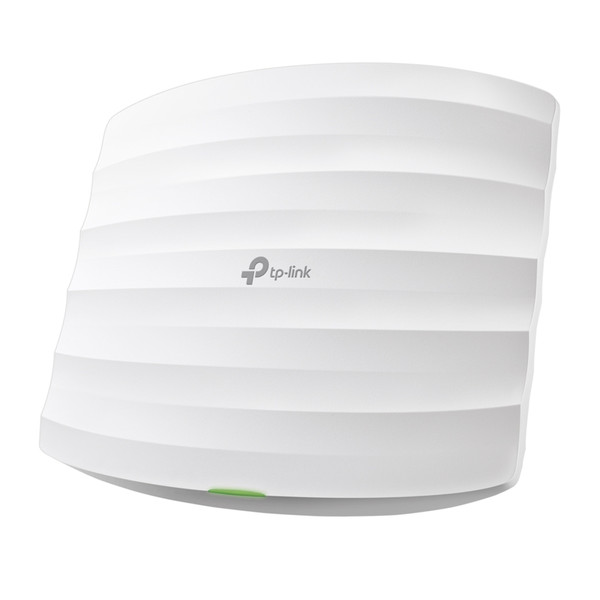

The TP-Link Omada EAP265 HD is an enterprise-grade, AC1750 wireless MU-MIMO access point. Designed for high-density environments like conference rooms, schools, and busy offices, it provides up to 1750 Mbps of dual-band Wi-Fi and natively integrates with the Omada Software Defined Networking (SDN) platform. [1, 2, 3, 4]
Features:
- Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.
- High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously.
- Integrated into Omada SDN: Supports Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- PoE Support: Supports both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
Technical Specifications
Antenna Type
Internal Omni 2.4GHz 3x3.5dBi, 5GHz 3x4dBi
Button Type
Reset Button
Compliance
FCC RoHS
Consumption
12.3W
Dimensions
8.1 × 7.1 × 1.5 in(206 × 182 × 37 mm)
Ethernet Port
2x Gigabit Port RJ45
Frequency
2.4GHz, 5GHz
Mount Type
Ceiling Mount, Wall Mount
Operating Temperature
0–40 ℃ (32–104 ℉)
Signal Rate
5GHz Up to 1300Mbps, 2.4GHz Up to 450Mbps
Transmission Rating
24dBm 2.4GHz, 24dBm 5GHz
