Description

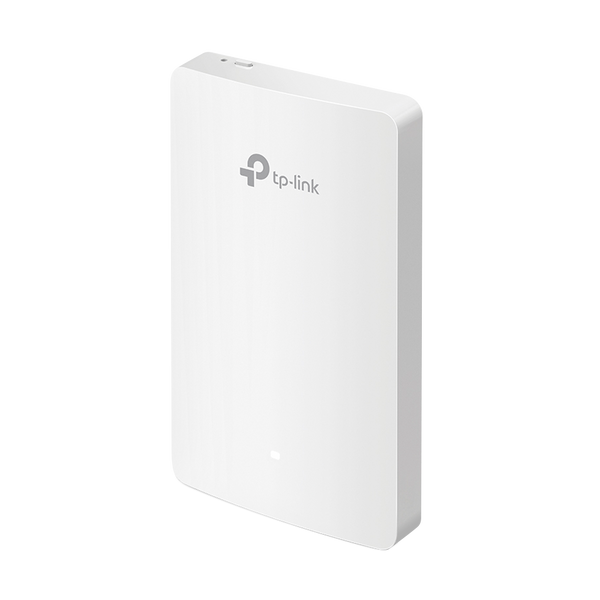

The TP-Link EAP235-Wall is an ultra-slim, in-wall wireless access point designed to provide discrete, high-speed Wi-Fi and wired Ethernet to individual rooms. It is ideal for deployments in hotels, dormitories, hospitals, and offices
Features:
- Dual-Band Wi-Fi 5: 867 Mbps on 5 GHz, and 300 Mbps on 2.4 GHz
- Gigabit Ports with PoE Flexibility: 1× PoE Input port, 1× PoE pass-through port, and 2× RJ45 downlink ports.
- Low Congestion: MU-MIMO allows multiple devices to receive data simultaneously, reducing congestion and improving speed
- Complete In-Room Wi-Fi Coverage: Guaranteed strong signals and corner-to-corner Wi-Fi coverage up to 300ft² (25??)
- Flexible Deployment and Easy Setup: Supports 802.3af/at PoE for flexible installation with Omada SDN for one-click setup.
- Advanced Features: Supports centralized cloud management and Seamless Roaming.
Technical Specifications
Antenna Type
Dual Band 2.4GHz 2x 3dBi/5GHz 2x4dBi
Button Type
Reset Button
Compliance
CE FCC RoHS
Consumption
9.8W/24.4W
Dimensions
5.6 × 3.4 × 0.8 in (143 × 86 × 19.7 mm)
Ethernet Port
1x Gigabit Port RJ45, 3x Gigabit Port
Frequency
2.4GHz/5GHz
Operating Temperature
0–40 ℃ (32–104 ℉)
Signal Rate
5GHz Up to 867Mbps, 2.4GHz Up to 300Mbps
Transmission Rating
7-20dBm 2.4GHz EIRP, 8-24dBm 5GHz U-NII-1 EIRP
Warranty
5 Year Warranty
