Description

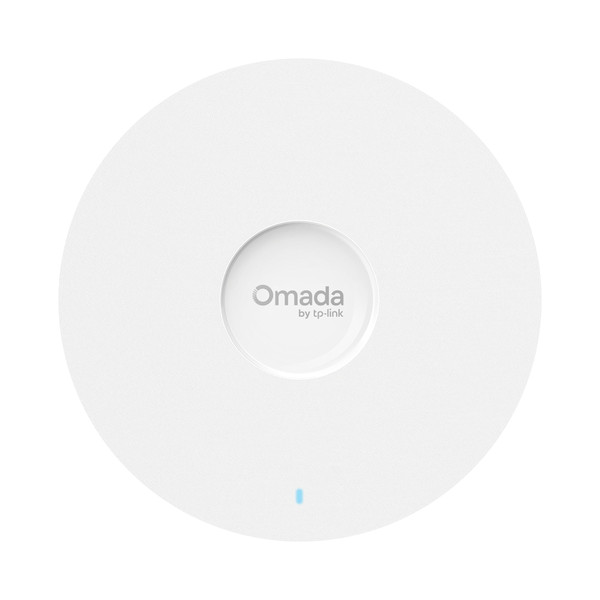

The TP-Link EAP660 HD is an enterprise-grade AX3600 Wi-Fi 6 wireless access point designed for high-density environments like offices, hotels, and schools. It delivers blazing combined speeds of up to 3550 Mbps, a 2.5 Gbps PoE+ port, and seamless Omada SDN cloud management
Features:
- 8-Stream Dual-Band Wi-Fi 6: 2,402 Mbps on 5 GHz and 1,148 Mbps on 2.4 GHz
- High-Density Connectivity: Up to 1,020+ Concurrent connections in crowded network environments.
- 1x 2.5G Port: Ensures fast connectivity throughout the network.
- Low Latency and Interference: MU-MIMO, OFDMA, and 1024-QAM ensure high performance for your network
- Flexible Deployment and Easy Setup: Supports both 802.3at PoE and DC Power supply for flexible installation. Omada SDN for one-click setup
- Advanced Features: Supports centralized cloud management, mesh, and seamless roaming
Technical Specifications
Antenna Type
Internal Omni 2.4GHz 4x6dBi, 5GHz 4x6.5dBi
Bluetooth
V5.2
Button Type
Reset Button
Compliance
FCC/IC/CE/NTRA/JRF/VCCI
Consumption
22.5W
Dimensions
8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Ethernet Port
1x 2.5 Gigabit RJ45 Port
Frequency
2.4GHz/5GHz
Mount Type
Ceiling Mount, Wall Mount, Junction Box Mount, T Bar Mount
Operating Temperature
0–40 ℃ (32–104 ℉)
Signal Rate
5GHz Up to 2402Mbps, 2.4GHz Up to 1148Mbps
User Capacity
1020+
Warranty
5 Year Warranty
