Description

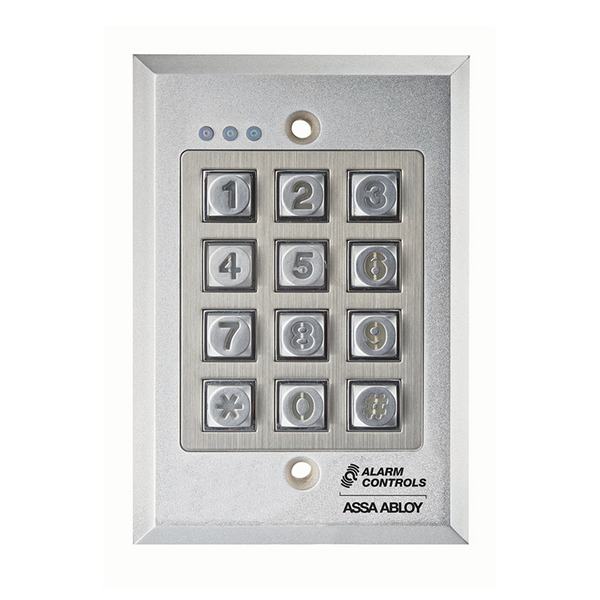

Self-contained, vandal resistant digital keypad
Features:
- Surface mounted
- True 10-digit operation (10 digits plus * and # keys)
- Capacity up to 100 user codes, length from 4 to 8 digits
- Fully programmable from the keypad
- Programmable passage and false code lockout mode capabilities
- Built-in tamper switch
Technical Specifications
Buzzer
Built-in audio feedback
Current Draw (Rest)
10–16 mA idle; 78 mA relay or 100 mA active
Faceplate
Brushed 402 stainless steel
Housing
Heavy die-cast flush mount
Keys
Backlit metal, 10+*#
LEDs
Red, yellow, green status
Material
Metal housing, stainless face
Outputs
One SPDT 5 A relay, one NPN transistor
REX Input
Yes, adjustable timer 1–999 s
Tamper Switch
Built-in
User Codes Capacity
100 codes (4–8 digits), 10 on second output
Voltage
12 or 24 VAC/DC, auto-sensing
Warranty
Limited Lifetime Warranty
