Description

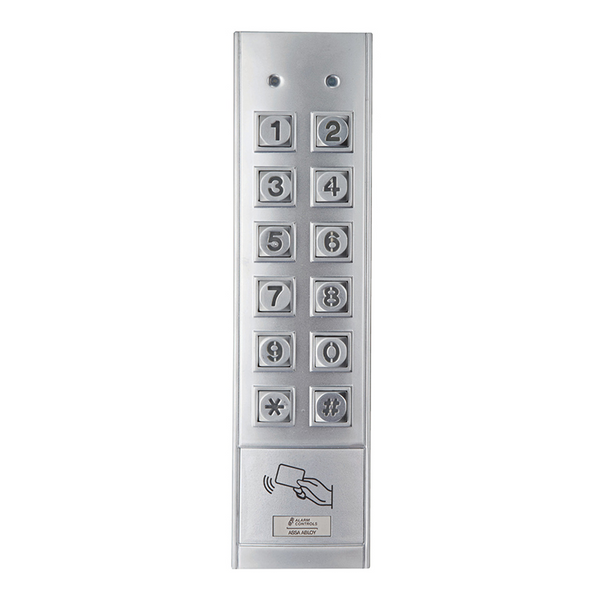

Mullion Mount Weather Resistant Keypad with Built-in Card Reader
Features:
- Narrow stile mullion mount with die cast zinc alloy housing
- 10-digit operation (10 digits plus * and # keys)
- Operates with card only, user code and card, or user code only
- Multiple outputs allow control of up to two devices (1000 users on output 1, 100 on output 2)
- All users can be programmed for card and/or codes at the device
- 50 Visitor cards and/or codes can be programmed for one time use or with time limit at the device
Technical Specifications
Buzzer
Yes
Current Draw (Active)
95 mA active; 60 mA idle
Housing
Die-cast zinc alloy
Keys
10-digit + * and #
LED/Audio
Audible key press, LEDs
Material
Zinc alloy housing, metal keys
Mounting
Narrow stile mullion
Outputs
Two SPDT relays
Rating
IP65 weatherproof
Tamper Switch
Built-in
User Capacity
1000 / 100 user codes
Voltage
12 VDC (11–15 V)
Warranty
Limited Lifetime Warranty
