Description

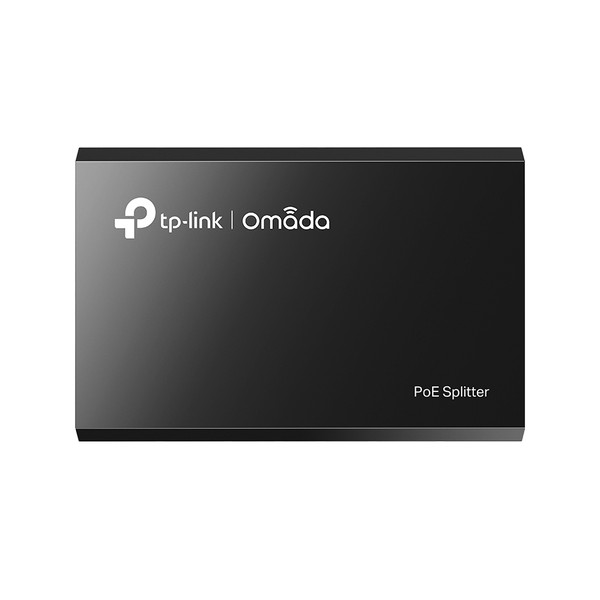

The TP-Link TL-PoE10R is a Gigabit Power over Ethernet (PoE) splitter that splits a single combined Ethernet-and-power cable into separate data and power streams. It is ideal for deploying non-PoE devices (like IP cameras or wireless access points) in remote areas without nearby AC outlets
Features:
- IEEE 802.3af compliant
- Output: 12VDC 1A, 9VDC 1A, 5VDC 2A selectable
- Gigabit speed support
- Plug-and-Play, requires no configuration
Technical Specifications
Compliance
FCC RoHS
Dimensions
3.2 × 2.1 × 0.9 in.(81 × 54 × 24 mm)
Ethernet Port
2x 10/100/1000Mbps RJ45 Port
Indicator
LED Power
Operating Temperature
0℃~40℃ (32℉~104℉)
Voltage
12VDC 1A
