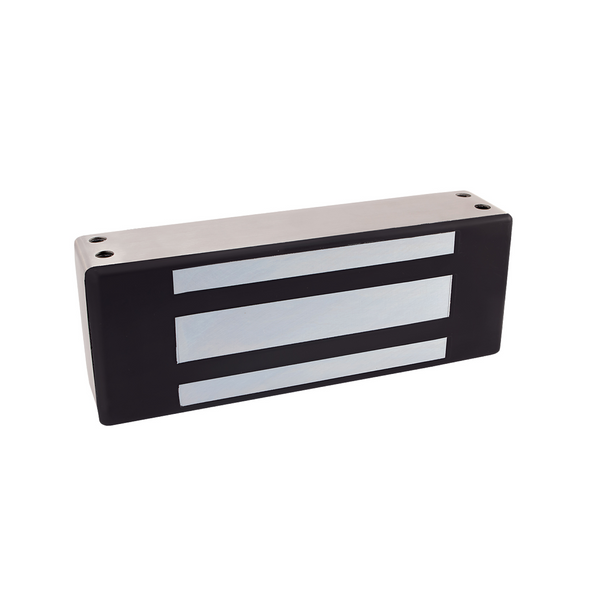

Door Position Switch
Features:
- PoE friendly
- Fire rated—3 hours
- Sustainability documentation
- Automatic dual voltage - no field adjustment required
- Fully sealed electronics - tamp and weather resistant
- Size optimized for use with door closers
Technical Specifications
Cable
10 ft stranded conductor
Compliance
UL 10C, CAN/ULC S533, UL 294, ANSI/BHMA A156.23 Grade 2, CSA-C22.2, CSFM, CE
Conduit Fitting
½? female to ¾? male
Currents
250 mA (12 VDC); 150 mA (24 VDC)
Dimensions (Armature)
6? × ½? × 2¾? (152 × 12 × 70 mm)
Dimensions (Magnet)
8? × 1¾? × 3? (203 × 44.5 × 76 mm)
Finish Compliance
Plated to MIL spec
Finishing
US32D/630 satin stainless steel
Fire Rated
UL 10C listed (3h)
Function
Electromagnetic lock, fail-safe
Holding Force
1,200 lbs (544 kg)
Indoor/Outdoor Use
Suitable for both; NEMA 4X equivalent
Instant Release
Patented circuit, no residual magnetism
Material
Ferrous metal, plated MIL-spec; stainless housing
Mounting
Surface mount with blind blind-nuts
Noise Suppression
Built-in MOV
Operating Temp
–40 °F to +140 °F (–40 °C to 60 °C)
Pack Qty
1 unit (frame + armature)
Seal Rating
Fully sealed electronics
Sensors
B = BondSTAT; D = Door Position Switch
Shipping Weight
~11 lbs (5 kg)
Variants
M62B, M62D, M62BD for sensors; F/G for mounting options
Voltage
12/24 VDC automatic
Warranty
Limited Lifetime Warranty
