Description
12/24 VDC, DPS
Features:
- Patented instant release circuit - no residual magnetism
- Both locks can be controlled as one or individually
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper and weather resistant
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
Technical Specifications
Cable
3 ft stranded, jacketed cable per lock
Certification
NFPA-101, fire marshal approved
Certifications
California State Fire Marshal (CSFM)
Compliance
UL10C, CAN4-S104, CAN/ULC-S533, ANSI/BHMA A156.23 (Grade 2), CSFM
Current Draw
250 mA @12 VDC; 150 mA @24 VDC per lock
Environmental
Rust-resistant plating
Finishing
Satin stainless steel (US32D/630)
Holding Force
1,200 lb per leaf (2,400 lb total)
Installation
Surface directly mounted via blind nuts
Magnet Dimensions
22?×3?×1.75?
Material
Stainless steel housing & ferrous surfaces
Monitor Options
BondSTAT, door position sensor optional
NEMA/IP Rating
NEMA 4X/IP66
Operating Temp
–40 °F to +140 °F (–40 °C to +60 °C)
Power
3 W per lock max
Release
Instant release (no residual magnetism)
Sealing
Fully sealed, weather & tamper-proof
Shipping Weight
16 lb (~7.3 kg)
Strike Plate Size
6?×2.75?×0.5? each
Type

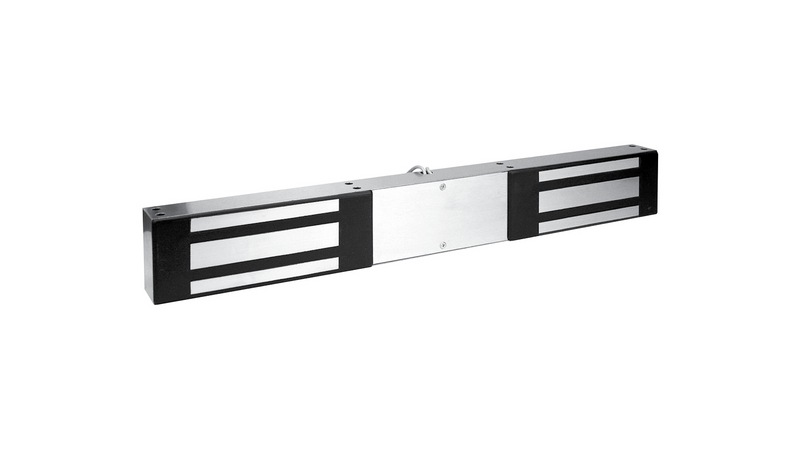

Double electromagnetic lock for double doors
Voltage
12/24 VDC auto-switch
Warranty
Limited Lifetime Warranty
