Description

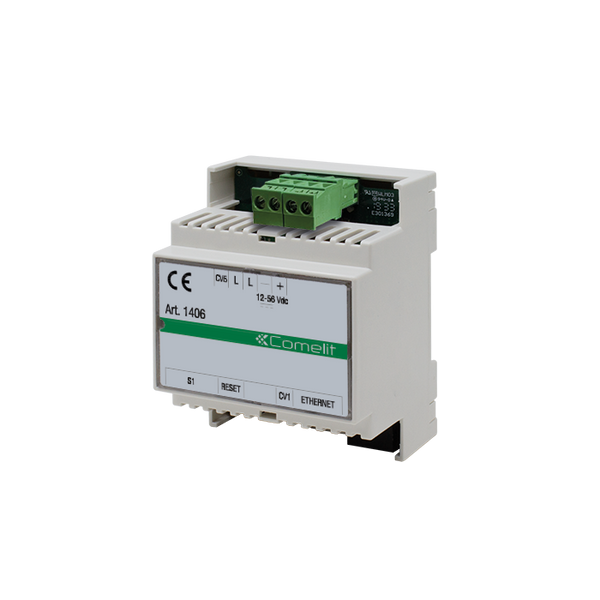

Multi-user call forwarding module for Simplebus 2 system, for video entry phone call transmission on smartphones/tablets which have the SimpleApp installed on them; external unit self activation; is also possible, in addition to the sending of lock-release commands. The module needs an internet connection with suitable bandwidth to work properly.
Features:
- The module has 1 Ethernet port for internet connection
- it has a 12-56 VDC power supply input and L-L terminals for interfacing with the Simplebus 2 system.
- The module needs an internet connection with suitable bandwidth to work properly.
Technical Specifications
Absorption
80 ÷ 250
DIN Modules
4
Dimensions
70x90x62 mm
Ethernet Port
1
IP Assignment
DHCP
IP Rating
IP20
Operating Humidity
25 ÷ 95 (RH max) (%)
Operating Temperature
41 ÷ 122 (°F)
Rail Type
DIN Rail Mount
Voltage
12÷56VDC
Weight
0.919
