Description

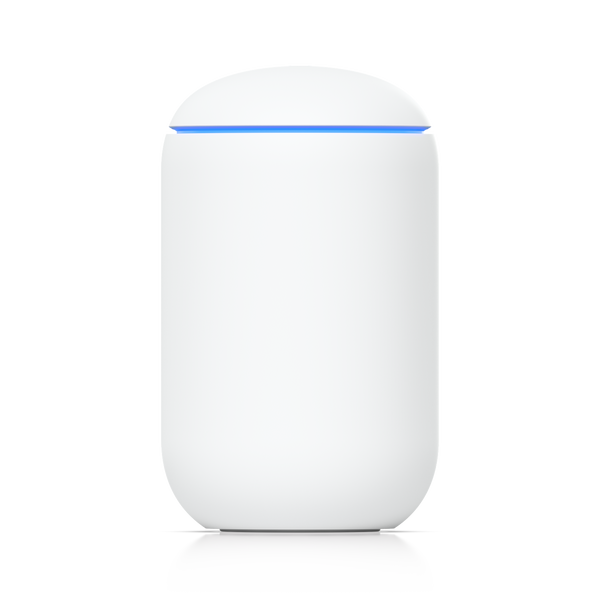

All-in-one UniFi Gateway and access point designed to support LAN and WiFi networks.
Technical Specifications
Advanced Networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Ambient Operating Humidity
5 to 95% Noncondensing
Ambient Operating Temperature
-10 to 45° C (14 to 113° F)
Antenna
(1) Internal, dual-band, quad-polarity antenna
Antenna Gain
2.4 GHz: 3 dBi
5 GHz: 4.5 dBi
Button
Factory reset
Certifications
CE, FCC, IC
Dimensions
Ø110 x 184.1 mm (Ø4.3 x 7.3")
Enclosure Material
Polycarbonate
LEDs
White/blue
MIMO
2.4 GHz: 2 x 2
5 GHz: 4 x 4
Management Interface
Ethernet
Bluetooth
Max. TX Power
2.4 GHz: 23 dBm
5 GHz: 26 dBm
Max. Power Consumption
26W
Networking Interface
LAN: (4) GbE RJ45 ports
WAN: (1) GbE RJ45 port
Next-generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Performance
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Power Method
Universal AC input, 100—240V AC, 0.6A Max., 50/60 Hz
Power Supply
AC/DC, internal, 50W
Processor
Quad-core Arm® Cortex® A57 at 1.7 GHz
Software
WiFi standards: 802.11a/b/g/n/ac
Wireless security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID: Up to 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 100+
Supported Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
Supported Voltage Range
100—240V AC
System Memory
2 GB DDR RAM
Throughput
Up to 1.7 Gbps
Throughput Rate
2.4 GHz: 300 Mbps
5 GHz: 1.7 Gbps
Weight
1.1 kg (2.3 lb)
Wi-Fi
Wi-Fi 5 (802.11ac)
