Description

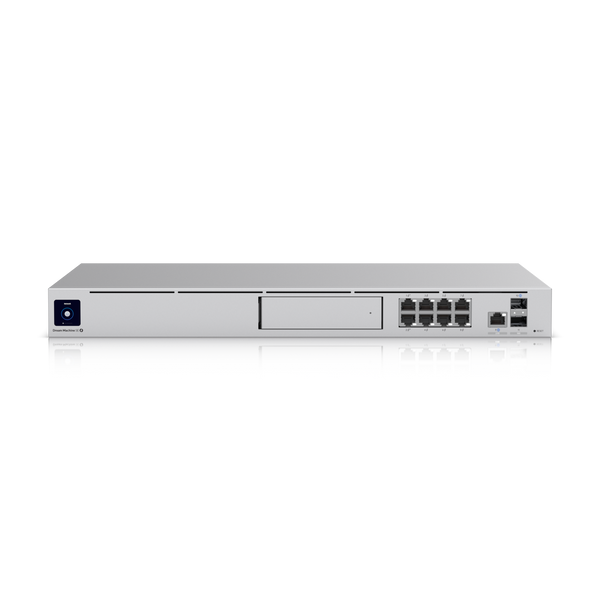

10G Cloud Gateway with 100+ UniFi device / 1,000+ client support, 3.5 Gbps IPS routing, and built-in PoE switching.
Technical Specifications
Advanced Networking
License-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
Ambient Operating Humidity
5 to 95% noncondensing
Ambient Operating Temperature
-10 to 40° C (14 to 104° F)
Application-Aware Firewall
Yes
Button
Factory reset
Certifications
CE, FCC, IC
Client Devices
200+
Dimensions
17.4 x 1.7 x 11.2" (442.4 x 43.7 x 285.6 mm)
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2")
ESD/EMP Protection
Air: ± 15kV, contact: ± 8kV
Enclosure Material
Aluminium CNC, SGCC steel
High Availability
Shadow Mode
IDS/IPS Throughput
3.5 Gbps*
*Measured with iPerf3 on a DHCP network. Performance may be reduced with PPPoE depending on ISP implementation.
LCM Display
(1) 1.3" touchscreen
Management Interface
Ethernet
Bluetooth
Max. PoE Wattage Per Port By PSE
PoE: 15.4W
PoE+: 30W
Max. Power Consumption
50W (Excluding PoE output)
Mount Material
SGCC steel
Multi-WAN Load Balancing
Yes
Networking Interface
LAN: (8) GbE RJ45 ports, (1) 10G SFP+ port
WAN: (1) 2.5 GbE RJ45 port, (1) 10G SFP+ port
Next-generation Security
Application-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
On-board Storage
16 GB eMMC
Integrated 128 GB SSD
Performance
Redundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
PoE Budget
180W
PoE Interface
(6) PoE (Pair A 1, 2+; 3, 6-)
(2) PoE+ (Pair A 1, 2+; 3, 6-)
Power Method
(1) Universal AC input, 100—240V AC, 4.4A Max., 50/60 Hz
(1) USP-RPS DC input, 52V DC, 3.94A
Power Supply
AC/DC, internal, 240W
Processor
Quad-core ARM® Cortex®-A57 at 1.7 GHz
Supported Voltage Range
100—240V AC
System Memory
4 GB DDR4
Test Data - UniFi Application Suite
Full
UniFi Devices
200+
Voltage Range PoE Mode
PoE: 44—57V
PoE+: 50—57V
Weight
10.9 lb (5 kg)
5 kg (10.9 lb)
WiFi
-
