Description

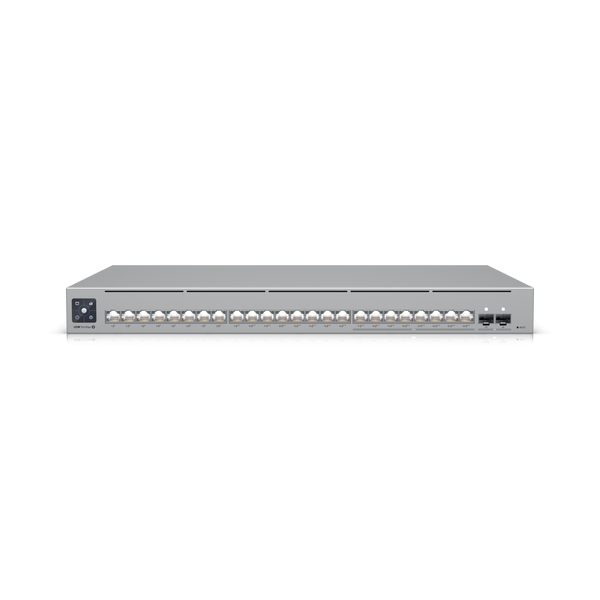

A 24-port, Layer 3 Etherlighting™ switch capable of high-power PoE++ output.
Technical Specifications
Ambient Operating Humidity
10 to 90% noncondensing
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Button
Factory reset
Certifications
CE, FCC, IC
Dimensions
17.4 x 12.8 x 1.7" (442 x 325 x 44 mm)
442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Enclosure Material
SGCC steel
Ethernet
Locating
Speed/link
Native VLAN/network
Forwarding Rate
83.328 Mpps
LCM Display
(1) 1.3" touchscreen
Layer 2 Features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 Features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
Management Interface
Ethernet In-Band
Max. PoE Wattage Per Port By PSE
PoE: 15.4W
PoE+: 30W
PoE++: 60W
Max. Power Consumption
50W (Excluding PoE output)
Networking Interface
(16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE Interface
(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power Method
(1) Universal input, 100—240V AC, 50/60 Hz
(1) USP-RPS DC input
Power Supply
AC/DC, internal, 450W
SFP+
Locating
Speed/link
Native VLAN/network
Supported Voltage Range
100—240V AC
Switching Capacity
112 Gbps
Total Available PoE
400W
Total Non-blocking Throughput
56 Gbps
Voltage Range PoE Mode
PoE: 44—57V
PoE+: 50—57V
Weight
11.3 lb (Without mounting brackets: 5.1 kg)
11.5 lb (With mounting brackets: 5.2 kg)
Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Available PoE
400W
Non-blocking Throughput
56 Gbps
