Description

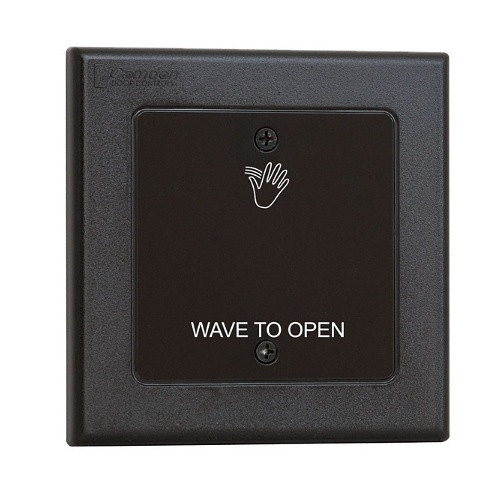

SureWave 2nd generation hands-free switches that provide superior door activation in new and retrofit access control and automatic door applications.
Features:
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC), gasket included
- Advanced active infra-red technology with fast response
- Heavy duty relay contacts
- Adjustable operating range up to 28", refer to model specification
- Adjustable time delay, refer to model specifcation
- Selectable fail safe/fail secure operation
Technical Specifications
Color
Black
Compliance
ROHS, ADA Compliant
Contact Rating
3 AMPS @ 30VDC
Current
40mA
Material
PC, Stainless Steel
Max Read Range
Standard: 1”- 28” (25.4MM – 711.2M), Auto: 6” TO 72” (152MM – 1820MM)
Relay Output
(2) FORM ‘C‘ (SPDT)
Sensor Type
Motion Sensing
Voltage
12-24 VOLTS
