Description

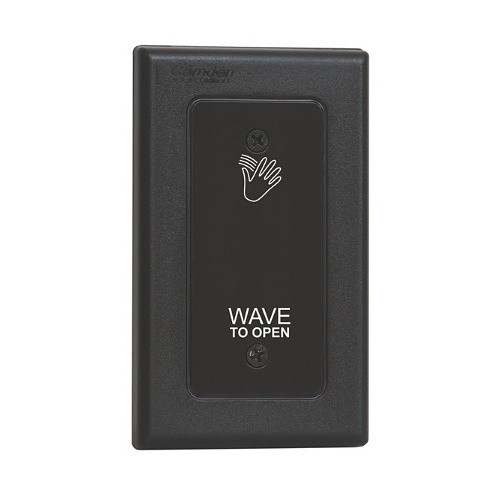

SureWave 2nd generation hands-free switches that provide superior door activation in new and retrofit access control and automatic door applications.
Features:
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC), gasket included
- Advanced active infra-red technology with fast response
- Heavy duty relay contacts
- Adjustable operating range up to 28", refer to model specification
- Adjustable time delay, refer to model specifcation
- Selectable fail safe/fail secure operation
Technical Specifications
Color
Black
Compliance
ROHS, ADA Compliant
Contact Rating
5 AMPS @ 30VDC
Current
60mA
Material
PC, Stainless Steel
Max Read Range
1”- 3” (25MM – 75MM) MINIMUM, 1”- 26” (25MM – 660MM) MAXIMUM
Operating Temperature
-4ºF TO +153ºF (-20ºC TO +85ºC)
Relay Output
(1) FORM ‘C‘ (SPDT)
Voltage
12-24 VOLTS
